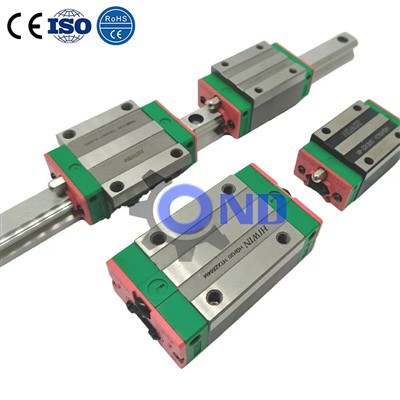

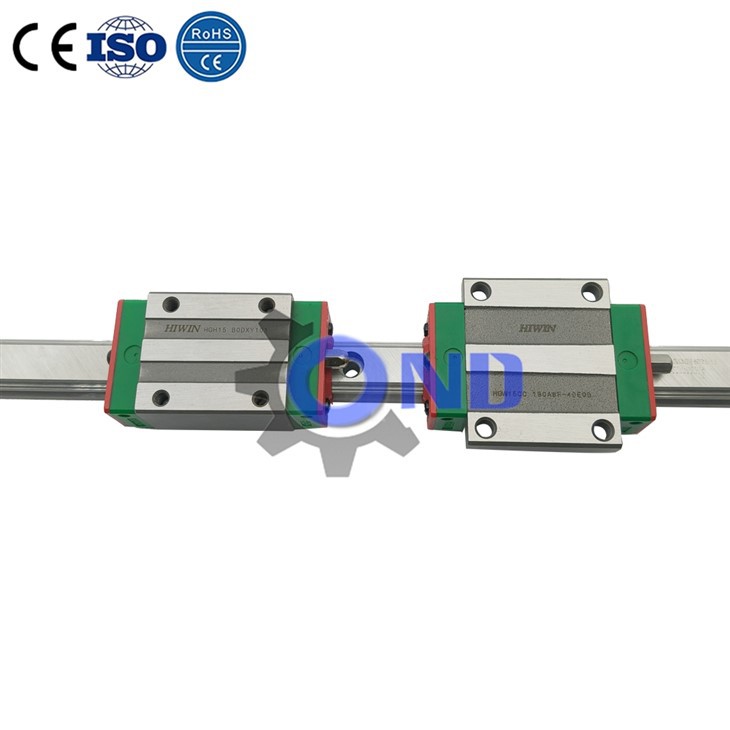

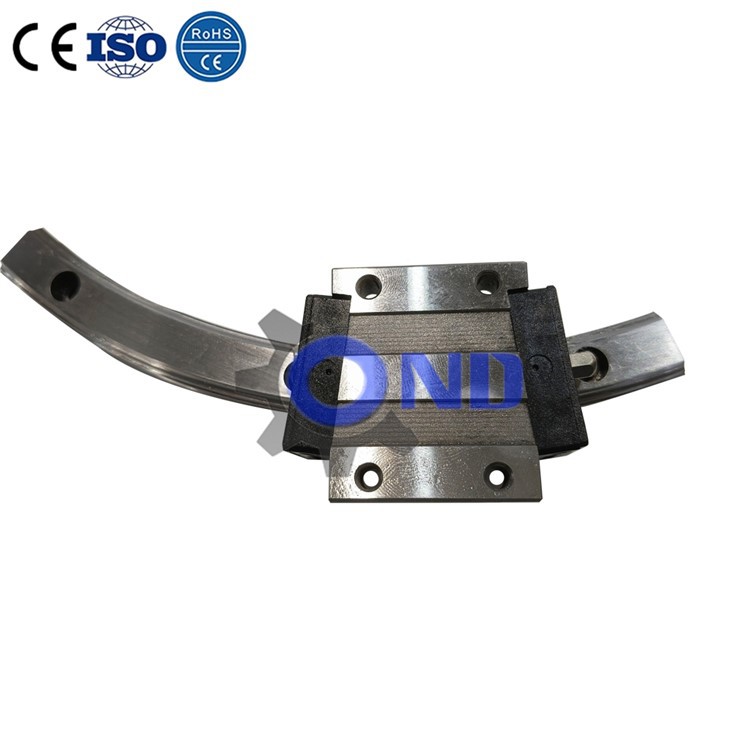

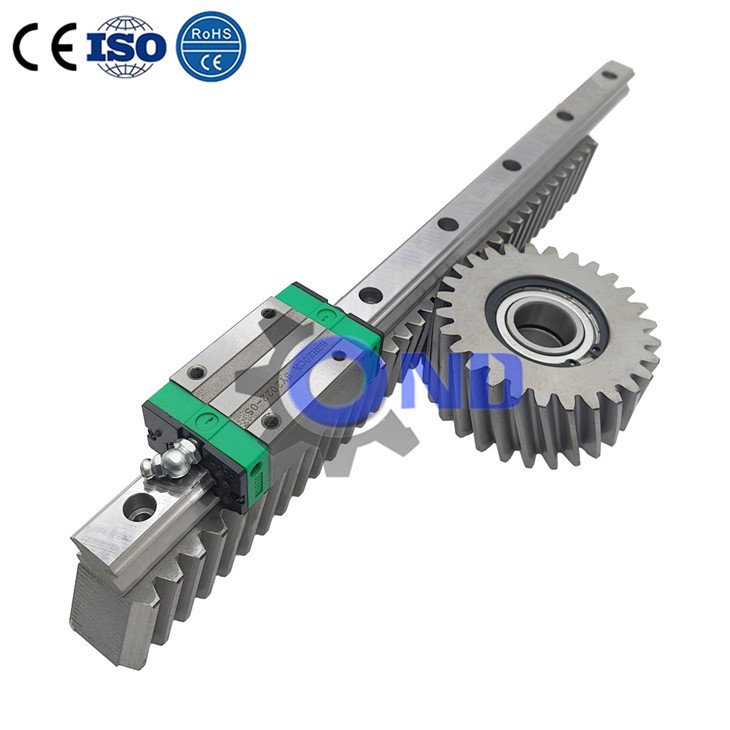

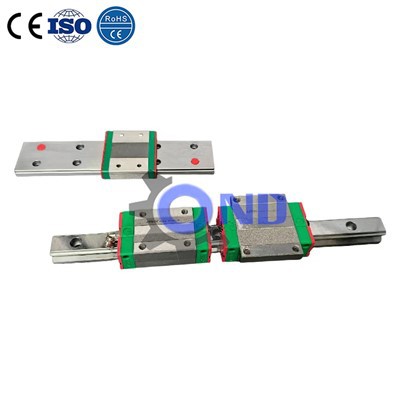

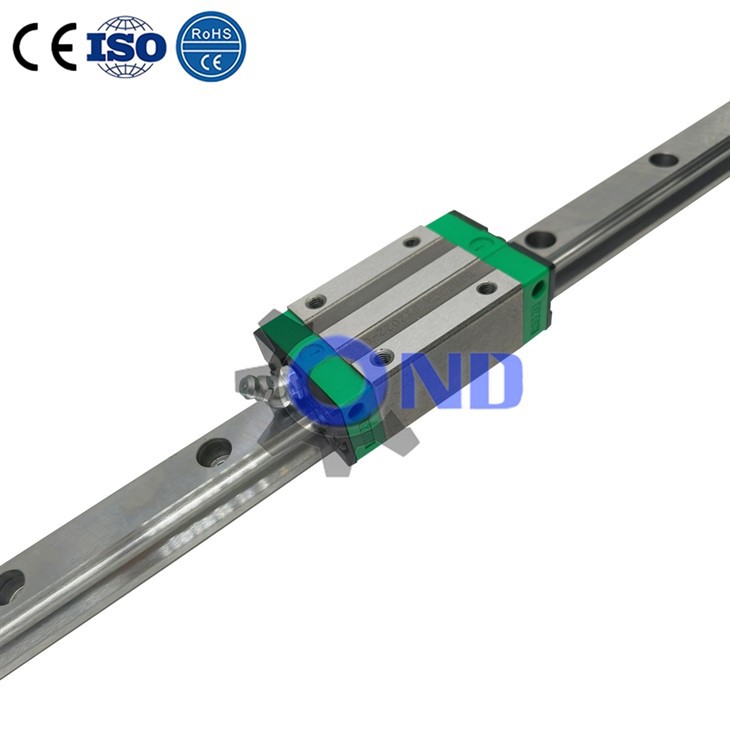

Linear Guide Rail And Carriage

Tianjin OuNaiDa Transmissions Technology Co., Ltd. is one of the leading manufacturers and suppliers of linear guide rail and carriage in China. If you're going to buy high quality linear guide rail and carriage, welcome to get more information from our factory. Also, custom service is available.

Product Description

A Comprehensive Guide to Linear Guide Rails and Carriages

Linear guide rail systems, comprising the rail and the carriage (or slider block), are fundamental components in the world of automation and precision machinery. They provide a rigid, low-friction solution for achieving highly accurate and repeatable linear motion. Think of them as the high-tech, heavy-duty equivalent of drawer slides for industrial applications.

I. Components of the System

Rail: A long, precision-ground hardened steel bar with one or more raceways for the rolling elements. It is rigidly mounted to the machine base and acts as the stationary guide path.

Carriage (Slider Block): The moving component that travels along the rail. It contains the rolling elements (balls or rollers), a load-bearing housing, and often integrated seals and wipers. The carriage is typically the part to which the moving machine component (e.g., a spindle, tool, or sensor) is attached.

II. Model & Type Variations

Linear guides are categorized based on several factors, allowing for selection tailored to specific application needs.

By Rolling Element:

Ball-Type Linear Guides: Use recirculating balls. They offer smoother motion, lower friction, and higher speeds. Ideal for applications requiring high speed and low to medium load capacity.

Roller-Type Linear Guides: Use cylindrical rollers. They provide a larger contact area, resulting in much higher load capacity, superior rigidity, and better impact resistance. Preferred for heavy-duty machining centers and high-load applications.

By Size and Form Factor:

Miniature Guides: Compact models (e.g., MGN7, MGN9, MGN12) used in lightweight applications like 3D printers, CNC routers, and small automation stages.

Standard Guides: The most common type, available in a wide range of widths and heights (e.g., HGR15, HGR20, HGR30), where the number often indicates the rail width in millimeters.

Heavy-Rail Guides: Designed with a wider and taller profile to support massive loads and moments, commonly found in large gantry systems and industrial machining centers.

By Accuracy Class:

Standard (Normal) Accuracy: For general automation tasks.

High Precision: For machine tools and measuring machines.

Ultra-High Precision: For semiconductor and electronics manufacturing equipment.

By Preload: The preload is a controlled internal clearance (or negative clearance) between the rolling elements and the raceways. Models are offered with different preload levels (e.g., C0 - none, C1 - light, C2 - medium, C3 - heavy) to optimize rigidity and smoothness for the application.

III. Key Selling Points & Advantages

The widespread adoption of linear guide systems is driven by their compelling advantages over older technologies like plain slides or dovetail ways.

High Precision & Smooth Motion: The recirculating rolling element system ensures minimal friction variation and stick-slip, enabling micron-level positioning accuracy and exceptionally smooth movement at any speed.

High Rigidity & Load Capacity: These systems are designed to withstand loads from all directions: radial, reverse-radial, and lateral (moment loads). Roller-type guides, in particular, offer immense static and dynamic load capacities, making machines more robust and stable during operation.

Long Service Life & High Reliability: Manufactured from hardened steel and designed for optimal load distribution, linear guides have a calculated service life (L10 life) that is typically very long. They are built to endure millions of cycles under proper conditions.

High-Speed Capability: With low friction and smooth rolling motion, these guides allow for very high traverse speeds, significantly reducing cycle times in automated production and packaging lines.

Low Maintenance & Easy Lubrication: Unlike plain bearings that require constant attention, linear guides often feature automatic lubrication ports and effective sealing systems that keep contaminants out and lubricant in, drastically reducing maintenance needs.

Compact Design & Space Saving: They provide a high level of performance in a relatively small package, allowing machine designers to create more compact and efficient equipment.

IV. Application Scenarios

Linear guide rails and carriages are ubiquitous in modern industry. Key application areas include:

Machine Tool Industry: The most demanding application. Used in CNC machining centers, lathes, milling machines, and grinders for precise movement of spindles, tool changers, and tables.

Industrial Robotics: Employed in the linear axes of Cartesian robots, gantry robots, and as critical components in the joints of articulated robots for precise arm movement.

Automation & Factory Automation: Found in pick-and-place units, automated assembly lines, palletizers, packaging machinery, and material handling systems.

Semiconductor & Electronics Manufacturing: Essential in wafer handling robots, PCB drilling and assembly machines, and lithography equipment where ultra-high precision and cleanliness are paramount.

Medical & Laboratory Equipment: Used in DNA sequencers, automated analysis machines, MRI and CT scanners, and surgical robots for their precision, reliability, and smooth motion.

Other Precision Equipment: Common in 3D printers, laser cutters/engravers, coordinate measuring machines (CMM), and optical inspection systems.

Conclusion

In summary, the linear guide rail and carriage system is a mature yet continuously evolving technology that forms the backbone of precision motion control. By offering an unmatched combination of accuracy, rigidity, speed, and durability, it enables the high performance and reliability expected in today's most advanced industrial and technological equipment. Selecting the correct model, size, and precision grade is crucial for optimizing the performance and longevity of any machine design.
